CSS Grid

Learning about the basics of HTML & CSS

CSS grid is one of the best tools for making a dynamic website layout.

CSS grid is used to organize HTML elements into rows AND columns. It is similar to flexbox, but in 2 dimensions instead of 1.

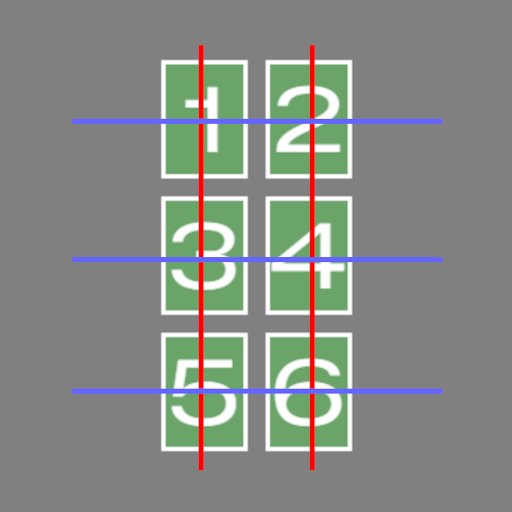

The red lines represent columns and the blue lines represent rows.

We can use a div as a container, and add the elements we want to organize into a grid inside of it.

<div id="gridContainer">
    <p class="gridItem" id="p1">1</p>
    <p class="gridItem" id="p2">2</p>
    <p class="gridItem" id="p3">3</p>
    <p class="gridItem" id="p4">4</p>
    <p class="gridItem" id="p5">5</p>
</div>

In CSS, you can set the display property of the container to grid.

grid-template-columns and grid-template-rows are used to define the number of columns and number of rows.

/* Style for the container */
#gridContainer {
    display: grid;

    /* Defines 2 columns and 4 rows with automatically adjusting width*/
    grid-template-columns: auto auto;
    grid-template-rows: auto auto auto auto;

    /* Center container in the screen */
    width: 50%;
    justify-content: center;
    align-items: center;

    /* Define the gap between grid elements */
    column-gap: 5px;
    row-gap: 5px;

    /* Style for grid items */
    .gridItem {
        background-color: #6aa469;
        border-style: solid;
        border-color: white;
        width: auto;
        margin: 4px;
        text-align: center;
        font-size: 65px;
        color: white;
    }
}

The auto value is the width of each column/row; you can also use % or px values to define the width.

Auto is a good choice here because it means the size of each grid cell is dynamic and adjusts to whatever text you put in it.

Now, each paragraph element should take up 1 spot each in the grid. However, an element can also take up more than 1 grid cell.

Below gridItem in your stylesheet, use #p5 to access the fifth paragraph and add the grid-column property.

#p5 {
    grid-column: 1 / span 2;
}

In the grid-column property, the 1 defines the start column of this element and the span 2 defines how many columns the element should take up.

This allows the 5th element to take up 2 spaces in the grid, resulting in this layout:

When you use CSS grid effectively, you can use it to organize the layout of the entire website. You may even have grids inside of grids.
